Case Study #126 – Grocery
Country Mart – Clinton, MO

Energy Savings $16,875/yr.

Project: LED Retrofit of T-8

Innovative Facilities Solutions was contracted to design and install a LED lighting system that would offer substantial savings while maintaining the existing light levels.  Utilizing their existing lighting layout, Innovative Facilities Solutions recommended the Linmore Labs UNIVERSAL RETROFIT SYSTEM for the sales floor and U.S. LED  for the coolers.  This combined system has greatly reduced energy usage and has enhanced the look of the store!

KCP&L Energy Efficient Incentive was utilized to help pay for the project and greatly improved the payback period to about 2 1/2 yrs.

The Results:

    • Energy Savings :  73%
    • Yearly Savings:   $16,875
    • Payback Period : 2.46 years
    • Pre-Tax ROI : 0.41
    • Displaced Energy:   187,503 kWh
    • kW Demand Saved:   39.79

Environmental Impact:

Removed from our atmosphere

    • 281,255 lbs of Carbon Dioxide
    • 468,758 gms of Sulfur Dioxide,
    • 1,087,519 gms of Nitrogen Oxides

Equivalent of planting 34 acres of trees.

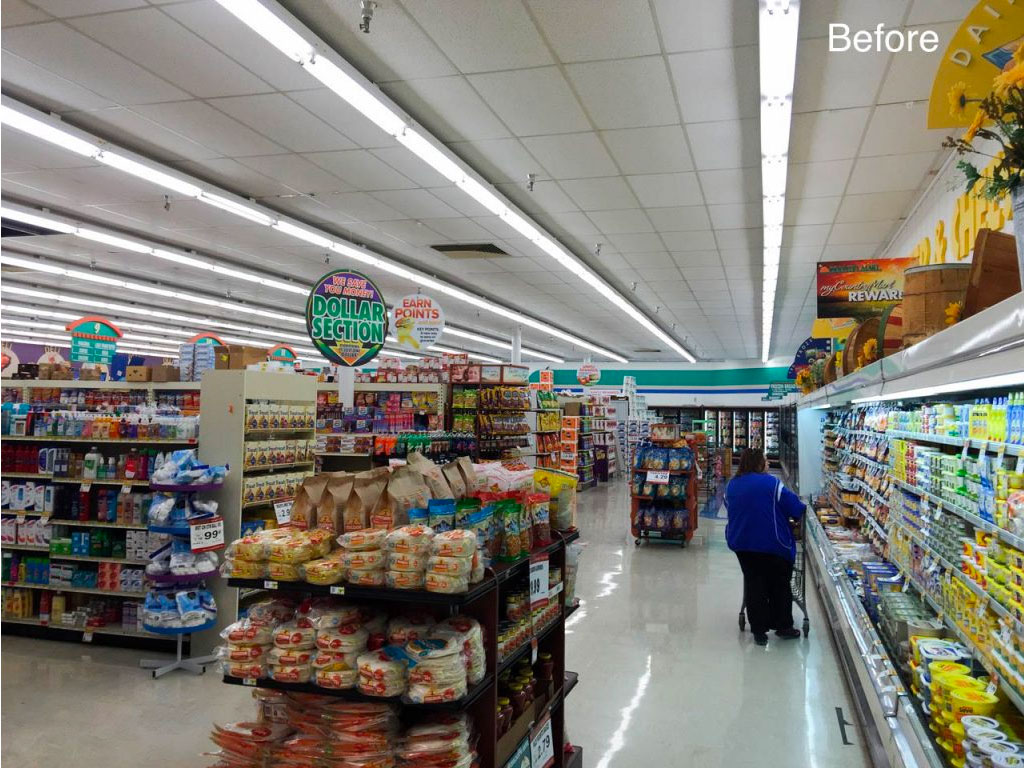

Before

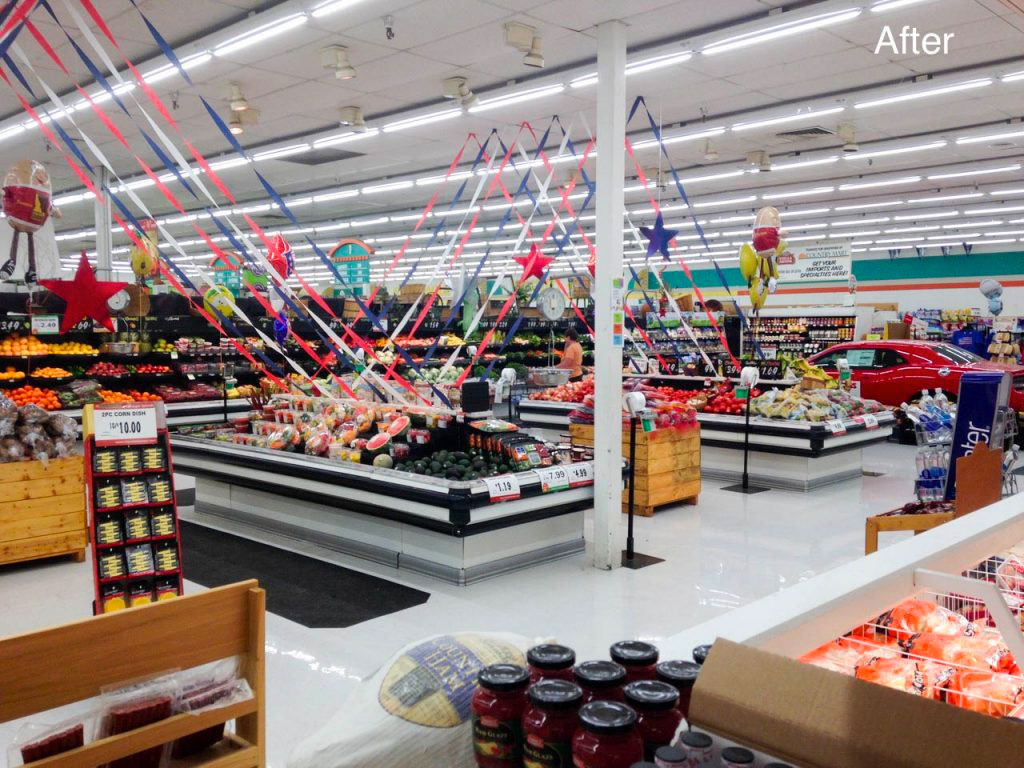

After

Country Mart
